GYPSE

Design
Continuous base profile of 55mm or 110 mm depth and 120mm height, 180°
connections made with stainless steel pins.
Extruded aluminium profiles in alloy AW6060 T6
Accessories made of ABS, PVC and EPDM
Ventilation and drainage holes
3 construction types:
Over the slab
Embedded in the slab
In front of the stab
Glazing infill from 17.52 up to 23.52mm
Aluminium cover caps
Performance:
Compliance with standards: test report available (brought into line with the latest changes to standards in relation to horizontal loads and glass infills).

Reversible post of 50 x 24 mm
Simple design "metal effect"
Applications: Slab, slab nose, front-lace panel, between walls and base wall
Widevariety of models and infill:

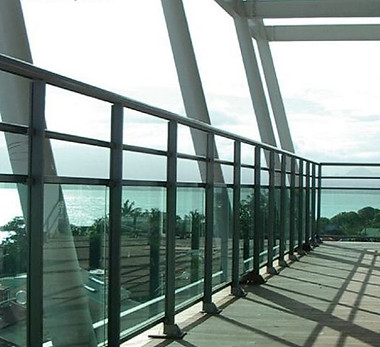

GLAZED BALUSTRADEDiareter or rectangular midrails
- vertical railings and running band beneath midrail, and running band beneath midrail with St Andrew's cross or "steamship" versions; glass, sheet metal, etc..
- Mix of materials: a luminium, glass and composite panel.
Available as a balcony separator and swimming pool barrier
Performances :
Standard compliance: PV testing available (meets latest standards for horizontal loads and glass infills)
